grandMA2 onPC Fader Wing

grandMA2

USB control surface that adds 15 motorised executor faders and four DMX universes to grandMA2 onPC on a 4.5 kg wing, replicating a full console's fader bank. Hire across the Gold Coast.

Product Number	MA Lighting Art. No. 120125
Motorised Faders	15 motorised executor faders
Executor Buttons	45 executor buttons + 15 button executors (backlit, dimmable)
DMX Output	4× XLR 5-pin DMX out
Parameters	2,048 with grandMA2 onPC (expandable to 4,096)
Connection	USB to PC (USB/PC + USB/CMD ports)
Power	Integrated universal PSU, 120/230V auto, max 40 VA
Dimensions	365 × 395 × 70 mm
Weight	4.5 kg

View the grandMA2 onPC Fader Wing in the MA Lighting archive

Overview

About the grandMA2 onPC Fader Wing

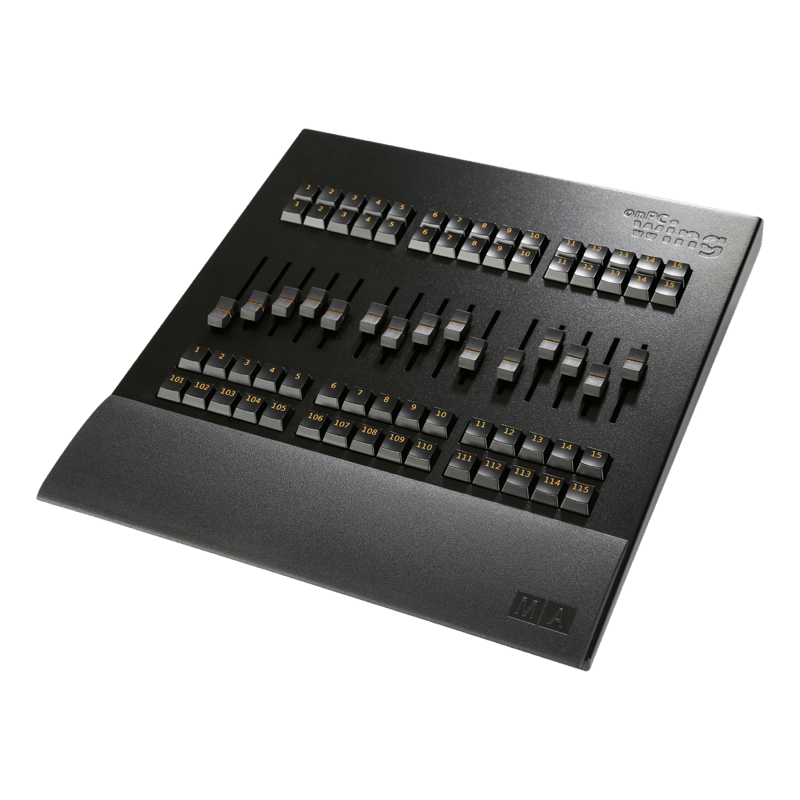

The grandMA2 onPC fader wing (MA Lighting Art. No. 120125) is a USB control surface that adds 15 motorised executor faders, 45 executor buttons and 15 button executors to a PC running grandMA2 onPC, replicating the fader bank of a full grandMA2 console on a 4.5 kg surface.

Real outputs, real faders

This is more than a fader box: the wing outputs four DMX universes over 5-pin XLR and unlocks real-time control of 2,048 parameters in combination with the onPC software (expandable to 4,096). The motorised faders track page changes instantly, and every key is backlit, dimmable and silent.

The natural companion to the onPC kit

Pair it with our grandMA2 on PC Kit (command wing) for a full two-wing MA2 surface, programming on the command wing and playback on the fader wing, at a fraction of the footprint and cost of a full-size desk.

Typical applications

Playback wing for corporate, theatre and festival shows run on grandMA2 onPC
Compact MA2 rigs where a full-size or light console won’t fit the budget or the booth
Touring operators carrying their own showfile who need real faders at FOH

Hire it for your next show

The grandMA2 onPC fader wing is part of the Krank’d control inventory, available across the Gold Coast, Brisbane, and Australia-wide. It pairs with the grandMA2 onPC Kit for a complete portable rig. We supply, rig, and operate. Your event, our show.
