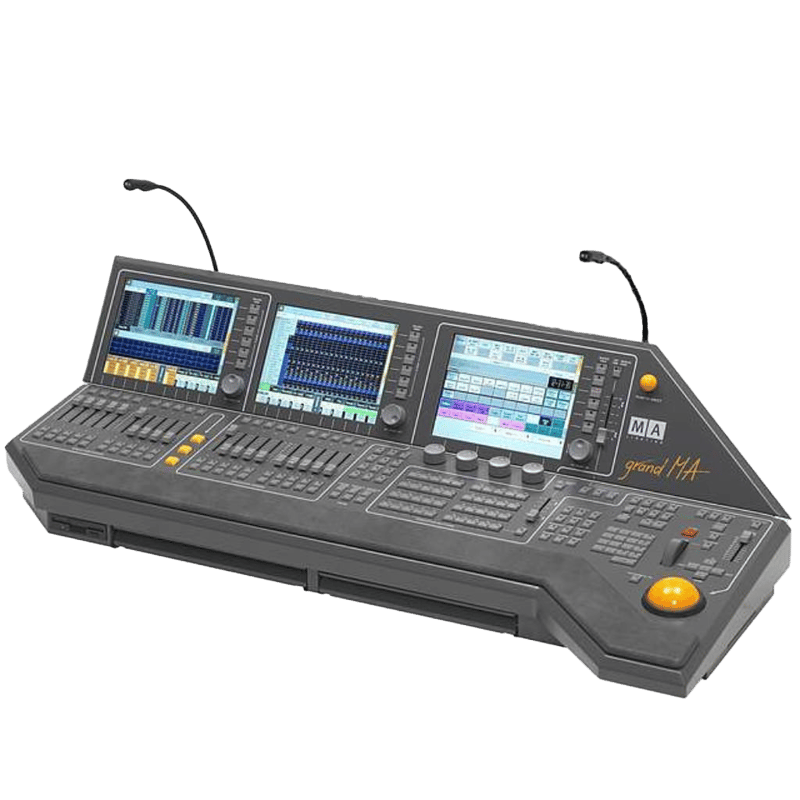

grandMA1 Full-Size

grandMA1

Rent the grandMA1 full-size console: 2,048 DMX channels (expandable to 4,096), 3 touchscreens & 20 motorized faders. Hire in Gold Coast & Brisbane.

Control Method	MA-Net, DMX, Art-Net, SMPTE, MIDI
DMX Universes	Up to 64 universes via NSP (network signal processor)
DMX Channels	2,048 onboard (expandable to 4,096 with additional hardware)
Faders	20 motorized playback faders
Executor Buttons	60 + 40 executor buttons across 128 pages
Displays	3 internal high-resolution TFT colour touch screens
External Display Support	2 × SVGA monitor outputs
Compatibility	Compatible with grandMA1 network nodes (NSP), MA 3D visualiser, media server integration
Power Supply	Integrated uninterruptible power supply (UPS)
Dimensions	1200 × 670 × 150 mm
Weight	47 kg

View the grandMA1 Full-Size in the MA Lighting archive

Overview

About the grandMA1 Full-Size

The grandMA1 Full-Size is the flagship console of MA Lighting’s grandMA1 series, a desk that defined a generation of large-scale production lighting control. Built for the demands of major touring productions, arena concerts, theatrical runs, and broadcast events, the grandMA1 Full-Size delivers a level of operational depth and reliability that earned it widespread adoption across the global entertainment industry.

At its core, the console provides 2,048 onboard DMX channels, expandable to 4,096 with additional hardware, and supports real-time control of up to 64 DMX universes when paired with grandMA Network Signal Processors (NSPs). Three internal high-resolution TFT colour touch screens provide a clear, responsive interface for programming and live operation, with two additional SVGA outputs available for external monitors, giving operators and programmers a flexible, multi-screen workspace suited to complex rigs.

Control Surface & Feature Set

The grandMA1 Full-Size features 20 motorized playback faders and 100 executor buttons (60 + 40 configuration), all accessible across 128 pages, providing enormous playback capacity without compromising the immediacy of hands-on control. The motorized faders respond dynamically to page changes, ensuring physical fader positions always reflect the active cue state, a critical feature in fast-moving live environments.

Control protocol support spans MA-Net, DMX, Art-Net, SMPTE timecode, and MIDI, enabling tight integration into complex show control systems, timecode-driven sequences, and multi-console networks. The desk’s multi-user networking architecture allows multiple grandMA1 or grandMA onPC stations to share a single show file in real time, essential for large productions running separate FOH, followspot, and dimmer-room operators. An integrated uninterruptible power supply (UPS) provides an additional layer of protection against power interruptions mid-show.

Production & Event Applications

The grandMA1 Full-Size is at home in any large-format production environment. It is regularly deployed on touring concert productions, major festivals, theatrical seasons, television studio builds, and corporate spectaculars where rig complexity, show file depth, and operational reliability are non-negotiable. Its compatibility with MA 3D free visualisation software and support for media server integration via the executor and macro architecture make it equally capable in pre-production and offline programming workflows.

Hire the grandMA1 Full-Size in Gold Coast & Brisbane

The grandMA1 Full-Size is available for hire from Krank’d Productions, servicing the Gold Coast, Brisbane, and surrounding South East Queensland regions. Whether you’re touring a large concert production, programming a theatrical season, or running a complex multi-operator corporate event, our grandMA1 Full-Size is maintained to production-ready standard and can be supplied with network nodes, operator support, and complementary lighting inventory. Contact our team via our contact page for availability, pricing, and package quotes.
