ETC Ion Xe 12K Kit

Rent the ETC Ion XE 12K kit, configured and ready to run 12,288 Eos outputs, with 20-fader wing & dual monitors in a flight case. Console hire in Gold Coast & Brisbane.

Control Method	ETC Eos Software (touchscreen, encoders, faders, keyboard)
DMX Universes	16 – 96 universes (2,048 – 12,288 outputs)
DMX Outputs	Up to 12,288 (expandable via ETCNet/sACN/Art-Net)
Faders	2 × 100mm main playback faders on console; 20 pageable 45mm faders on wing
Playback Masters	Up to 100 pages via fader wing
Compatibility	Eos Family software ecosystem; Art-Net, sACN, ETCNet3
Connectivity	Multiple DMX5 (5-pin XLR) outputs, multiple Ethernet ports
Dimensions	Console: 482mm × 457mm × 159mm
Weight	Console: 10.8kg (excluding fader wing and monitors)

Downloads Spec Sheet (PDF)

View the Ion Xe 12K Kit at ETC (Electronic Theatre Controls)

Overview

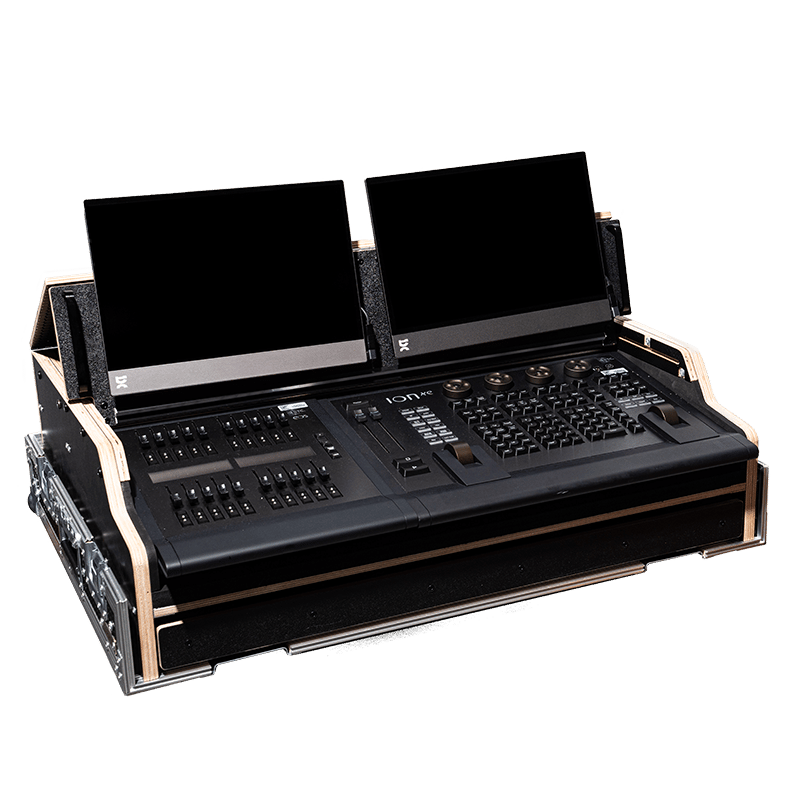

About the ETC Ion Xe 12K Kit

The ETC Ion Xe 12K Kit is a professional lighting control solution built around ETC’s battle-tested Eos software platform, the same ecosystem trusted by Broadway, touring productions, and major live events worldwide. The kit comprises the Ion Xe console, a 20-fader wing with dual monochromatic LCD displays, and dual external monitors, all packed into a custom flight case ready for fast deployment on any gig. With support for up to 12,288 DMX outputs (96 universes) and seamless scalability via sACN and Art-Net, this console punches well above its compact footprint.

Control & Connectivity

The Ion Xe runs full Eos Family software, giving operators access to the same feature set found on ETC’s flagship Eos Ti and Apex consoles. Two 100mm main playback faders handle primary cue stack duties, while the 20-fader wing extends control across 100 pages of submasters, channels, and effects, each page instantly readable via the wing’s onboard LCD displays. Four pageable encoders handle non-intensity parameters for fast, tactile control of moving lights, LEDs, and media servers without leaving the keyboard. Dual external monitor support (up to 3840×2160 resolution) provides a full Eos multi-window layout for patch, live, magic sheets, and cuelist views simultaneously. The Ion Xe communicates natively over ETCNet3, sACN, and Art-Net, integrating cleanly into existing venue networks or touring rigs with ETC nodes and gateways.

Ideal Applications

The Ion Xe 12K Kit is equally at home on a corporate gala, touring concert rig, theatrical production, or broadcast studio floor. Its compact console dimensions make it practical for FOH positions with limited space, while the Eos software’s multi-user partitioning allows a second operator or programmer to work simultaneously over network, invaluable on complex festival or theatre calls. The included flight case protects all components during transport and doubles as a stable working surface, making this kit a reliable choice for Australian touring and regional event work where fast bump-in and bump-out is essential.

Hire the ETC Ion Xe 12K Kit in Gold Coast & Brisbane

The ETC Ion Xe 12K Kit is available for hire from Krank’d Productions, servicing the Gold Coast, Brisbane, and surrounding regions. Whether you’re programming a multi-universe touring show or need a dependable Eos-platform console for a one-off theatrical season, our kit arrives flight-cased and ready to go. Contact our team via our contact page to check availability, discuss technical requirements, and receive a tailored hire quote.
