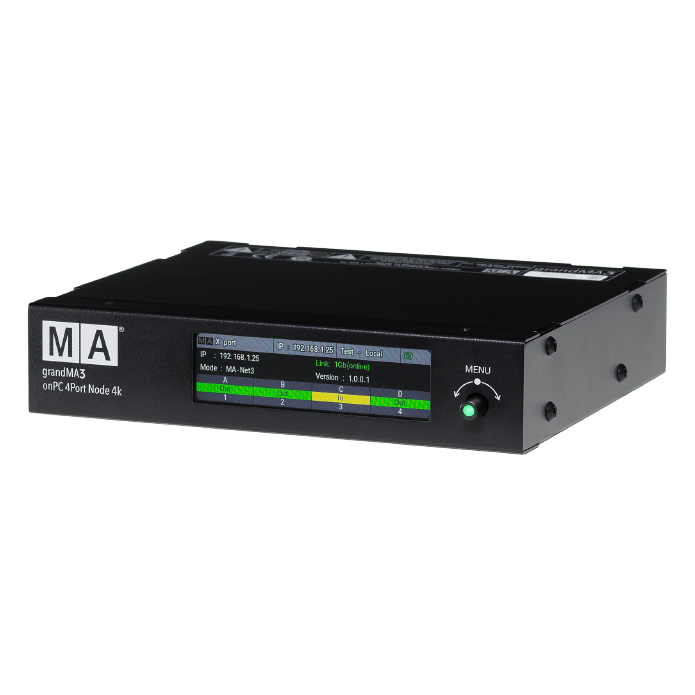

grandMA3 onPC 4Port Node 4K

MA Net

Rent the grandMA3 onPC 4Port Node 4K, with 4,096 parameters, 4 frame-sync DMX outputs, MA-Net3/sACN/Art-Net. Node hire in Gold Coast & Brisbane.

Control Method	MA-Net3, Art-Net, sACN
DMX Universes	4 universes (4,096 parameters)
DMX Outputs	4x DMX512-A (5-pin XLR female)
Compatibility	grandMA3 onPC software
Connectivity	1x etherCON/RJ45 (1 Gbit/s)
Power Consumption	Max 15 VA
Dimensions	207 x 184 x 43 mm
Weight	2 kg

View the grandMA3 onPC 4Port Node 4K at MA Lighting

Overview

About the grandMA3 onPC 4Port Node 4K

The grandMA3 onPC 4Port Node 4K is a compact four-universe DMX interface designed to bridge the grandMA3 onPC software environment with physical DMX fixtures and dimmer infrastructure. It ships with 4,096 parameters licensed out of the box (no additional software keys required), making it an efficient and cost-effective solution for mid-scale productions that demand the full grandMA3 workflow without a dedicated hardware console.

The unit outputs four frame-synchronised DMX512-A universes via 5-pin XLR connectors and communicates over a 1 Gbit/s Ethernet connection using MA-Net3, Art-Net, or sACN protocols. RDM (Remote Device Management) is supported across all outputs, enabling bidirectional communication with compliant fixtures for streamlined address management and diagnostics. Power can be supplied via standard AC mains (100–240 V, 50/60 Hz) or Power over Ethernet (PoE), offering flexible deployment options in rack or front-of-house environments.

Integration & Use Cases

The 4Port Node 4K slots naturally into any grandMA3 network as a distributed output node, allowing operators running grandMA3 onPC on a laptop or dedicated PC to control full lighting rigs with professional reliability. Its compact half-rack footprint and low power draw (max 15 VA) make it well-suited to touring rigs, black-box theatre, corporate events, broadcast studios, and film/TV productions where rack space and power budgets are at a premium. The unit operates reliably across an ambient temperature range of 0°C to 40°C, covering the full spectrum of Australian indoor venue and outdoor covered-stage conditions.

Hire the grandMA3 onPC 4Port Node 4K in Gold Coast & Brisbane

The grandMA3 onPC 4Port Node 4K is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and South East Queensland. Whether you need a single node to expand an existing grandMA3 rig or a set of nodes to distribute universes across a large venue, our team can assist with integration, network configuration, and on-site support. Contact us to check availability and request a quote for your next production.
