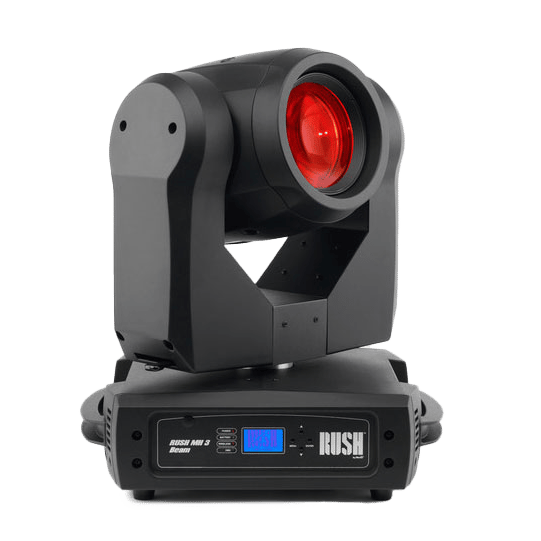

Martin MH3 Beam

About the Martin MH3 Beam

The Martin MH3 Beam is a high-output automated beam fixture built around the industry-proven Philips MSD Platinum 5R discharge lamp. Delivering a razor-sharp 1° to 3.8° beam, the MH3 punches through haze and atmospheric effects with exceptional intensity, making it a reliable workhorse on demanding touring and festival rigs where a tight, defined aerial beam is non-negotiable.

Features & Performance

The MH3 Beam is equipped with a static gobo wheel carrying 17 gobos plus open, providing a range of beam shaping and projection options beyond its signature raw beam output. An indexing, rotating 8-facet prism allows for beam multiplication effects, while the integrated frost filter softens the output for wash-style looks when required. A built-in strobe function and smooth 540° pan / 220° tilt movement complete a feature set well-suited to fast-paced, high-energy programming. Control is via standard DMX512, integrating cleanly into any professional console workflow.

Ideal Applications

The MH3 Beam is a natural fit for concerts, music festivals, touring productions, theatrical productions, and large-scale corporate events where aerial beam work and gobo projection are central to the design. Its compact form factor and relatively modest 350W typical power draw make it practical for rigs with limited weight or power budgets, without sacrificing the visual impact expected from a 5R-class beam fixture. It performs equally well as a primary beam fixture on smaller stages or as a supplementary unit in larger multi-fixture arrays.

Hire the Martin MH3 Beam in Gold Coast & Brisbane

The Martin MH3 Beam is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the wider South East Queensland region. Whether you’re lighting a concert, festival stage, theatre production, or corporate event, our team can advise on quantities, rigging, and integration with your existing rig. Contact us for availability and a tailored quote.
