Astera Pluto Fresnel

FresnelWash IP Rated

Rent the Astera Pluto Fresnel: 80W RGBMA battery Fresnel with 15°–60° zoom & 300W-equivalent output. Portable lighting hire in Gold Coast & Brisbane.

LED Wattage	80W
Colour Temperature	3200K – 6500K (Tunable White)
Beam Angle	15° – 60° (Zoomable Fresnel)
Battery Runtime	Up to 3 hours at full power
Control Protocols	Wired DMX, Wireless CRMX (LumenRadio)
Dimensions	22.8 × 16.7 × 28.4 cm
Weight	3.65 kg
DMX Channels	3 ch (RGB) / 5 ch (DIM RGBW) / 7 ch (DIM CCT GM CRO RGB) / 13 ch (Effect Fix); 30+ profiles via AsteraApp
IP Rating	IP66

Downloads Spec Sheet (PDF) DMX Chart (PDF) GDTF Fixture File

Overview

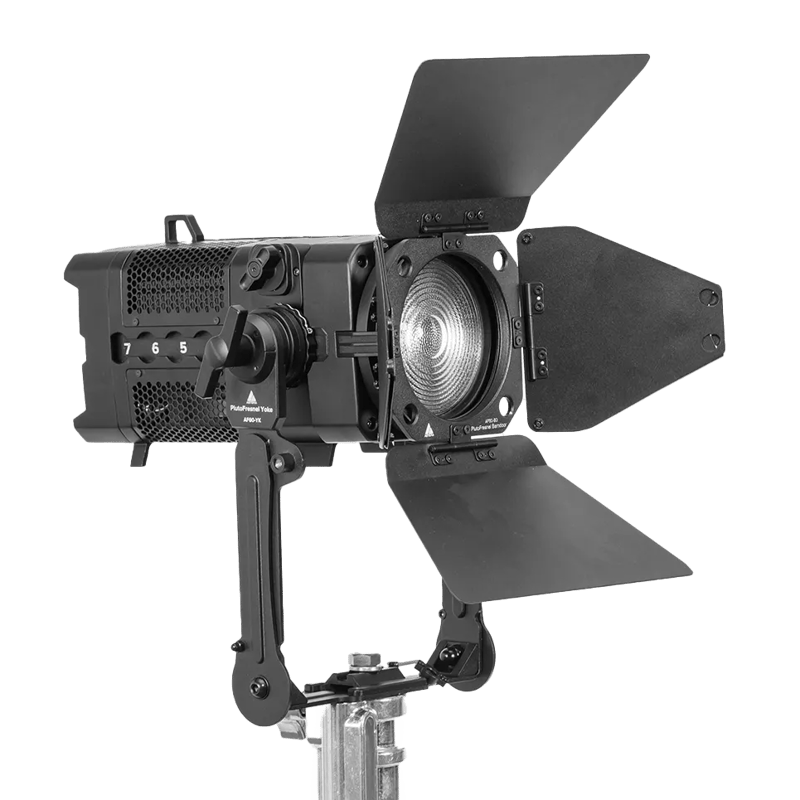

About the Astera Pluto Fresnel

The Astera Pluto Fresnel is a professional-grade, battery-powered LED Fresnel designed for productions that demand high-quality tungsten-style output without the constraints of mains power. Drawing just 80W, the Pluto Fresnel delivers output comparable to a 300W tungsten Fresnel, making it an efficient and powerful tool for cinematographers, lighting directors, and event technicians alike.

A continuously variable zoom from 15° to 60° gives operators precise beam control directly from the fixture, with no additional lenses or barn door swaps required. Tunable white output across 3200K to 6500K allows seamless matching to ambient conditions or deliberate shifts in colour temperature to suit the scene.

Wireless Freedom & Control

The Pluto Fresnel is built around the Astera ecosystem, supporting both wired DMX and wireless CRMX via LumenRadio, the industry-standard wireless DMX protocol trusted on touring productions and broadcast sets worldwide. With an integrated battery providing up to three hours of runtime at full output, the fixture can be rigged in locations where running power cables is impractical or impossible: overhead truss positions, location film shoots, remote stages, or temporary event structures.

The Power/Data Combination Cable allows multiple units to be daisy-chained for simultaneous charging and DMX distribution when mains power is available, streamlining setup time on large-scale calls.

Applications

The Astera Pluto Fresnel is equally at home on a film or television set as it is in a live event or theatrical environment. Its soft, even Fresnel output is well suited to key lighting talent, washing backdrops, or creating motivated practical sources on stage. The battery-operated design makes it a go-to solution for outdoor concerts and festivals, corporate events in venues with limited power infrastructure, and location shoots across South East Queensland where cable runs are not feasible.

Hire the Astera Pluto Fresnel in Gold Coast & Brisbane

The Astera Pluto Fresnel is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the wider South East Queensland region. Whether you need a single unit for a corporate shoot or a full rig of Pluto Fresnels for a touring production or festival, our team can assist with equipment, delivery, and on-site technical support. Contact us to check availability and receive a tailored quote for your next production.
