Fusion Wash Q48

Wash IP Rated

Rent the Fusion Wash Q48, a 48×10W RGBW wash delivering 22,760 lumens with IP65 rating & swappable beam filters. Wash hire in Gold Coast & Brisbane.

Light Source	48 × 10W RGBW LEDs
Total Lumen Output	22,760 lm
Zoom Range	8° – 45° (interchangeable filters: 8°, 15°, 25°, 45°)
Colour Mixing	RGBW
Control Protocols	DMX-512, RDM, W-DMX
Power Consumption	521W
IP Rating	IP65
Dimensions	563 × 93 × 314 mm
Weight	12.9 kg
DMX Channels	4 modes: 4 / 6 / 10 / 12 ch

Downloads DMX Chart (PDF) User Manual (PDF) GDTF Fixture File

Overview

About the Fusion Wash Q48

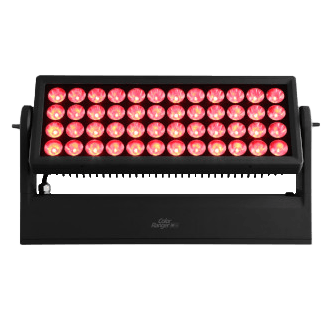

The Fusion Wash Q48 is a high-output, outdoor-rated RGBW wash luminaire built around 48 × 10W RGBW LEDs delivering a striking 22,760 lumens. Housed in an IP65-rated enclosure, the Q48 is engineered for demanding production environments, equally at home on an exposed festival stage as it is in a fly-bar rig for indoor theatre or corporate events. Its wide bar format provides even, uniform wash coverage across large surfaces, making it a go-to tool wherever broad, saturated colour or clean white light is required over distance.

Beam Shaping & Control

A standout feature of the Q48 is its interchangeable lens filter system, allowing the operator to select from 8°, 15°, 25°, or 45° beam angles to suit the throw distance and coverage requirements of any venue or stage configuration. This flexibility means a single fixture can perform as a tight, punchy long-throw wash or a wide, soft flood, simply by swapping the filter in the field. Control is handled via DMX-512 with full RDM support for remote addressing and diagnostics, and wireless W-DMX capability eliminates the need for data cabling in challenging or temporary rigging positions. Connectivity is provided by Seetronic PowerKon IP65 in/out and 5-pin IP65 XLR in/out, ensuring weatherproof signal and power looping throughout the rig. Selectable LED modulation modes deliver flicker-free output for broadcast and film applications.

Production Applications

The Fusion Wash Q48 suits a broad range of professional applications: outdoor festivals and touring concert productions where IP65 protection is non-negotiable; theatre and performing arts venues requiring quiet, smooth RGBW colour mixing without fan noise interference; corporate events and product launches demanding punchy, consistent wash coverage; and broadcast or film shoots where flicker-free, high-CRI output is critical. Its bar-wash form factor makes it particularly effective for eye-candy aerial looks, truss-end washes, and large set-piece illumination.

Hire the Fusion Wash Q48 in Gold Coast & Brisbane

The Fusion Wash Q48 is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the wider South East Queensland region. Whether you’re lighting a major outdoor festival, a touring production, a theatre season, or a high-profile corporate event, our team can assist with fixture quantities, wireless DMX integration, and full technical support on-site. Contact us to check availability and receive a tailored quote for your production.
