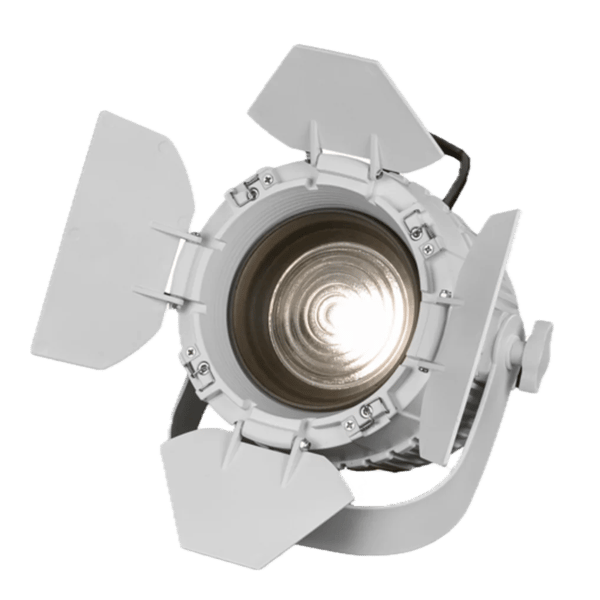

Event Lighting Fresnel F48VW

FresnelWash

Rent the Event Lighting F48VW: variable white Fresnel with 2×48W COB LEDs & 20°–50° manual zoom. LED Fresnel hire in Gold Coast & Brisbane.

LED Type	Variable White COB LED
LED Wattage	48W
Colour Temperature	2700K – 6500K
Beam Angle	15° – 55°
Control Protocols	DMX
Power Consumption	48W
Dimensions	320 × 260 × 270 mm
Weight	7.5 kg
DMX Channels	3 modes: 1 / 2 / 7 ch

Downloads DMX Chart (PDF) User Manual (PDF)

Overview

About the Event Lighting Fresnel F48VW

The Event Lighting Fresnel F48VW is a variable white LED Fresnel fixture designed for stage, broadcast, and studio applications where precise colour temperature control and quiet operation are essential. Powered by a 48W COB LED engine, it delivers a smooth, even Fresnel wash with adjustable colour temperature spanning 2700K to 6500K, allowing operators to dial in anything from a warm theatrical amber-white through to a crisp daylight-balanced output.

Features & Performance

The F48VW features a manual zoom mechanism that adjusts the beam angle between 15° and 55°, giving lighting operators flexibility over throw distance and coverage without the need to change fixtures or lenses. Integrated barn doors allow for precise beam shaping and spill control, a critical feature in studio and theatre environments. Smooth 0–100% dimming and silent fan cooling make this fixture equally at home in broadcast studios, film sets, and live theatre productions where ambient noise is a concern. Both black and white body options are available, assisting with visual integration on set or in architectural installations. DMX control via 3-pin in/out connections and PowerCON in/out for power looping keeps cabling clean on multi-fixture rigs.

Ideal Applications

The F48VW suits a wide range of production scenarios across the live events and content creation industries. It performs reliably as a key light, fill light, or cyclorama wash in theatre and television studios, and is equally well-suited to corporate presentations, awards nights, and live performance stages where consistent, colour-accurate white light is required. Its variable white capability makes it particularly useful on hybrid productions that need to match both tungsten and daylight sources.

Hire the Event Lighting Fresnel F48VW in Gold Coast & Brisbane

The Event Lighting Fresnel F48VW is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the wider South East Queensland region. Whether you’re lighting a theatre production, corporate event, film shoot, or live concert, our team can advise on quantities, rigging configurations, and control integration. Contact us for availability and a tailored quote.
