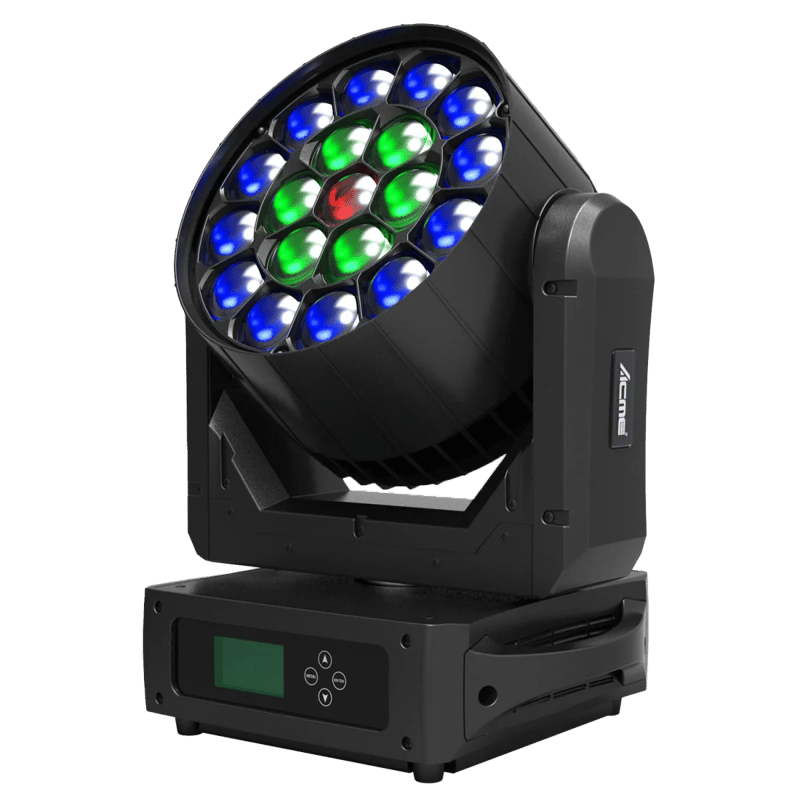

ACME CM-700Z

Hire the ACME CM-700Z: 19×30W RGBW LED wash with 5°–50° zoom & individual ring control. LED wash hire in Gold Coast & Brisbane.

Light Source	19 × 30W RGBW LEDs
LED Wattage	30W per LED
Total Lumen Output	Up to 7,136 lm
Colour Temperature	Variable CTO, 2,500K to 8,000K
Zoom Range	5° – 50°
Pan Range	540°
Tilt Range	270°
Colour Mixing	RGBW
Control Protocols	DMX512, RDM
Power Consumption	700W
Dimensions	541 mm (H) × 430 mm (W) × 335 mm (D)
Weight	22 kg
DMX Channels	3 modes: 15 / 17 / 27 ch

Downloads Spec Sheet (PDF) DMX Chart (PDF) User Manual (PDF) GDTF Fixture File

View the CM-700Z in the ACME Lighting archive

Overview

About the ACME CM-700Z

The ACME CM-700Z is a powerful RGBW LED automated wash fixture built around an array of 19 × 30W RGBW LEDs, delivering up to 7,136 lumens of richly mixed colour across a wide zoom range of 5° to 50°. The motorised zoom system allows operators to shift seamlessly between tight, punchy beams and expansive soft washes, all from a single unit, making the CM-700Z an exceptionally versatile tool across a broad range of production environments.

Variable CTO adjustment from 2,500K to 8,000K gives the CM-700Z strong credentials in broadcast and studio applications where accurate colour temperature matching is essential. Individual LED ring control unlocks additional creative possibilities, enabling pixel-style effects, dynamic chases, and smooth strobe transitions that go well beyond conventional wash-light functionality. Pan of 540° and tilt of 270° provide the full range of movement expected from a professional automated wash, while DMX512 and RDM support ensure straightforward integration into any modern lighting control system.

Key Applications

The CM-700Z is well suited to large-scale live concert touring and festival stages, where its output and zoom range allow it to perform equally as a front wash, side light, or aerial effect fixture. In theatre, the variable white balance and smooth dimming curve make it a credible replacement or supplement to tungsten fixtures under strict colour-matching requirements. For broadcast, corporate events, and live television, the flicker-free LED source and precise CTO range ensure consistent, camera-friendly results under varying production conditions. The individual ring control also lends the fixture strong visual impact as an architectural or truss-mounted eye-candy element.

Hire the ACME CM-700Z in Gold Coast & Brisbane

The ACME CM-700Z is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and South East Queensland. Whether you’re lighting a major festival stage, a corporate gala, a theatre production, or a broadcast studio, our team can advise on quantities, rigging configurations, and control integration to get the most out of this fixture. Contact us for availability and a custom quote.
