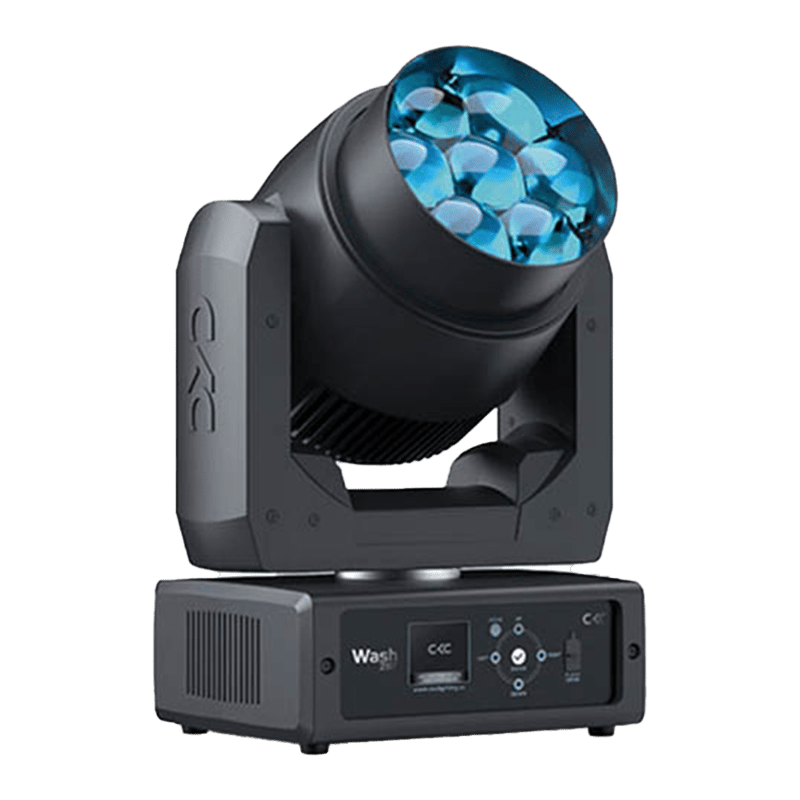

TourPro (CKC) ZB7

BeamWash IP Rated

Hire the TourPro ZB7, a 7×40W RGBW LED wash/beam moving head with 3.8°–54° zoom. Compact fixture hire in Gold Coast & Brisbane.

Light Source	7 × 40W RGBW LEDs
Beam Angle	4° – 50°
Pan Range	540°
Tilt Range	270°
Strobe	Yes
Control Protocols	DMX512, Art-Net, sACN
Power Consumption	300W
IP Rating	IP65
Dimensions	350 × 290 × 450 mm
Weight	7.5 kg
DMX Channels	3 modes: 12 / 19 / 45 ch

Downloads DMX Chart (PDF) GDTF Fixture File

Overview

About the TourPro ZB7

The TourPro ZB7 is a compact, outdoor-rated automated wash/beam fixture built around seven 40W RGBW LEDs. With a motorised zoom spanning 4° to 50°, it transitions cleanly from a tight aerial beam to a broad, even wash, making it equally at home as a beam FX unit, a mid-air pixel element, or a front/side wash source. Its 540° pan and 270° tilt range give operators the full movement envelope needed for dynamic, fast-moving looks on large stages.

Individual pixel control across all seven LED elements opens up a wide palette of creative possibilities: pixel chasing, segmented colour mixing, and per-zone intensity mapping can all be driven natively via DMX without the need for additional media servers. The integrated strobe function adds further impact for high-energy live performance moments.

Key Features & Applications

IP65 weather resistance makes the ZB7 a practical choice for outdoor festivals, touring rigs, and any production where fixtures may be exposed to rain, dust, or humidity. The full triple-protocol support (DMX512, Art-Net, and sACN) ensures seamless integration into both conventional console environments and networked lighting systems running grandMA, Hog, or Onyx platforms.

Typical applications include concert touring (stage wash and aerial beam FX), festival main stages, corporate event centrepieces, theatrical specials, and broadcast/TV studio work where a versatile, self-contained moving fixture is required. At 7.5 kg, the ZB7 is light enough to rig on trussing or ground-support structures without excessive load concerns, and its compact 350 × 290 × 450 mm footprint suits tight trim heights.

Hire the TourPro ZB7 in Gold Coast & Brisbane

The TourPro ZB7 is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the wider South East Queensland region. Whether you need a single unit for a corporate centrepiece or a full rig for a touring festival stage, our team can assist with design, delivery, and on-site technical support. Contact us for availability and a custom quote.
