ACME AECO 5

Profile

Rent the ACME AECO 5, a 450W LED moving head delivering 13,000 lumens with 6.5°–54° zoom & high CRI output. LED spot hire in Gold Coast & Brisbane.

Light Source	450W white LED engine
Total Lumen Output	13,000 lm
Colour Temperature	6,000K
CRI	Ra ≥95, R9 ≥90
Zoom Range	6.5° – 54°
Gobos	1 static gobo wheel (8 gobos), 1 rotating gobo wheel (7 gobos)
Prism	4-facet rotating prism
CMY Mixing	Linear CMY + CTO (2,700K – 6,000K)
Pan Range	540°
Tilt Range	270°
Control Protocols	DMX512, RDM, Art-Net, sACN
Power Consumption	670W
Dimensions	692 mm (H) × 364 mm (W) × 252 mm (D)
Weight	26.5 kg
DMX Channels	3 modes: 24 / 28 / 33 ch

Downloads Spec Sheet (PDF) DMX Chart (PDF) GDTF Fixture File

Overview

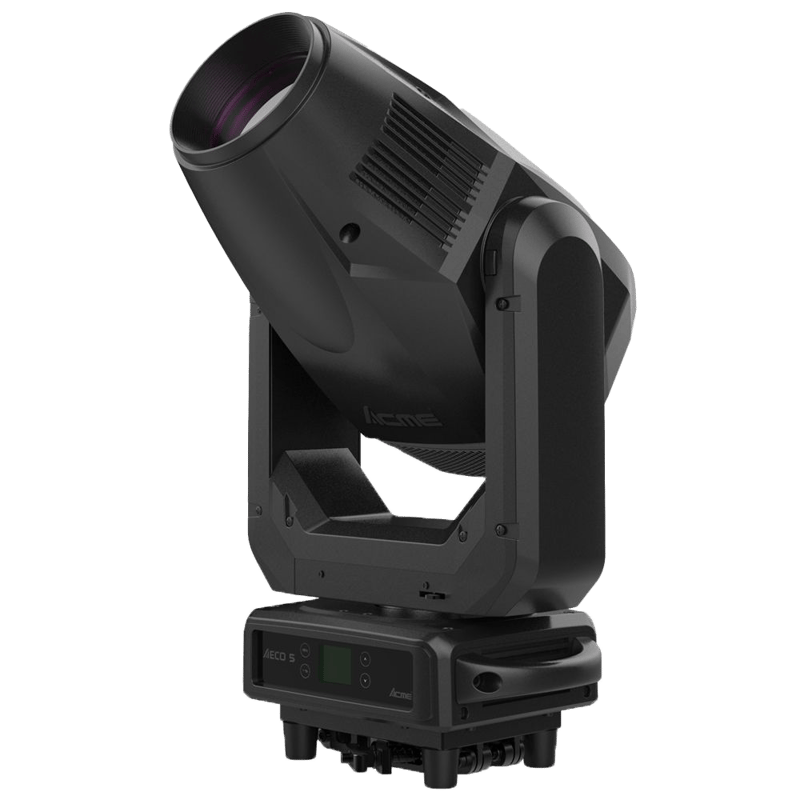

About the ACME AECO 5

The ACME AECO 5 is a high-output automated profile fixture built around a 450W white LED engine, delivering 13,000 lumens at a native 6,000K colour temperature with outstanding colour rendering (Ra ≥95, R9 ≥90). Designed for productions where accurate, natural-looking light is non-negotiable, the AECO 5 is equally at home in theatrical rigs, broadcast studios, live concert touring, and high-end corporate events.

Performance & Features

The AECO 5 offers a wide continuous zoom range of 6.5° to 54°, giving operators the flexibility to punch a tight beam across a large venue or wash a broad area from a single fixture. Linear CMY colour mixing with variable CTO (2,700K – 6,000K) allows precise colour matching and warm-to-daylight shifts without sacrificing the fixture’s exceptional CRI, critical for live broadcast and film work where skin tones and set colours must reproduce accurately on camera. Two gobo wheels (one static with 8 gobos, one rotating with 7 gobos), a 4-facet rotating prism, and dual frost filters extend the fixture’s creative range considerably. Pan and tilt cover 540° and 270° respectively at 16-bit resolution, ensuring smooth, precise repositioning during live performance. Data connectivity spans DMX512, RDM, Art-Net, and sACN via both 3-pin/5-pin XLR and RJ45, with power delivered via PowerCON TRUE1, all standard, road-ready connectors.

Ideal Applications

The AECO 5’s combination of high CRI, broad zoom, and a full suite of beam-shaping tools makes it a versatile choice across a wide range of production types. It performs strongly as a key or front-of-house profile in theatre and dance, as a camera-facing fixture in broadcast and film environments, and as a feature spot in concert and festival rigs. Its 670W power draw and 26.5 kg weight sit within the mid-to-heavy range for touring profiles, so adequate rigging capacity and power distribution planning should be factored into production design.

Hire the ACME AECO 5 in Gold Coast & Brisbane

The ACME AECO 5 is available for hire from Krank’d Productions, servicing Gold Coast, Brisbane, and the broader South East Queensland region. Whether you’re programming a theatre season, touring a concert, shooting a broadcast production, or lighting a large-scale corporate event, our team can advise on quantities, rigging, and integration with your existing rig. Contact us for availability and a tailored quote.
